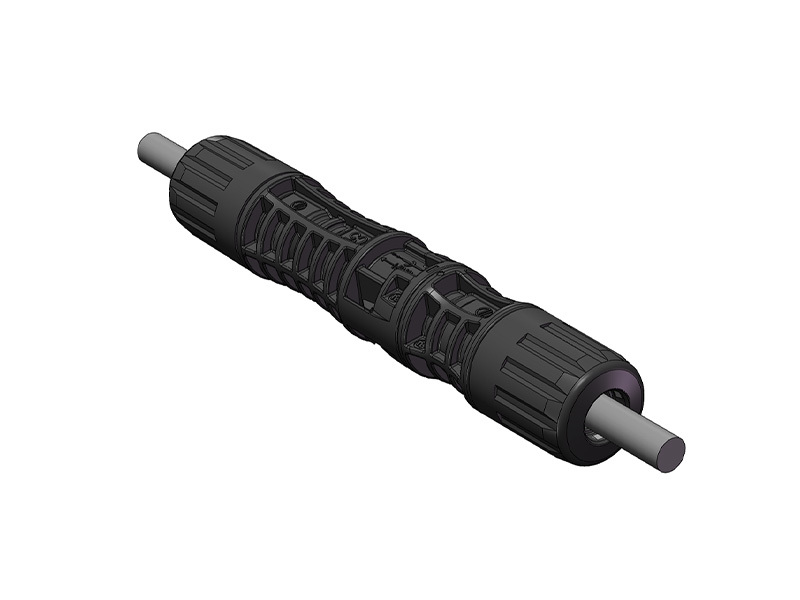

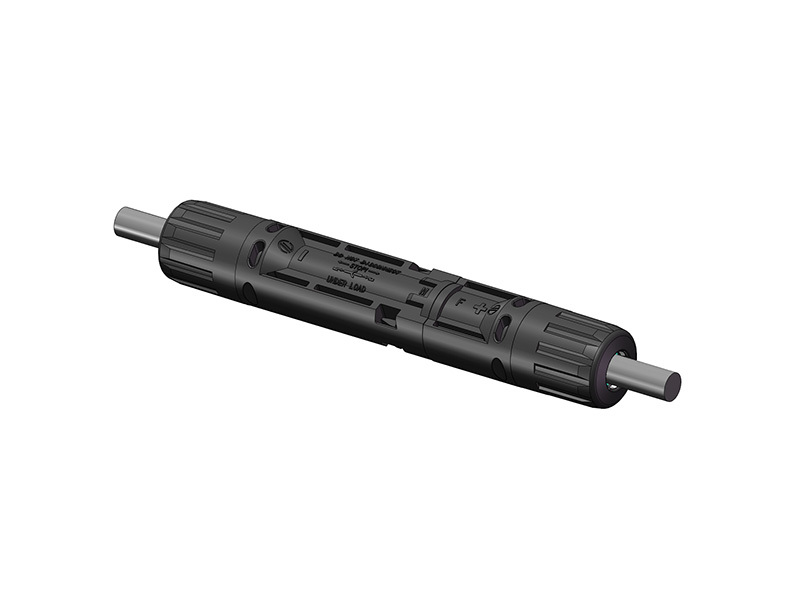

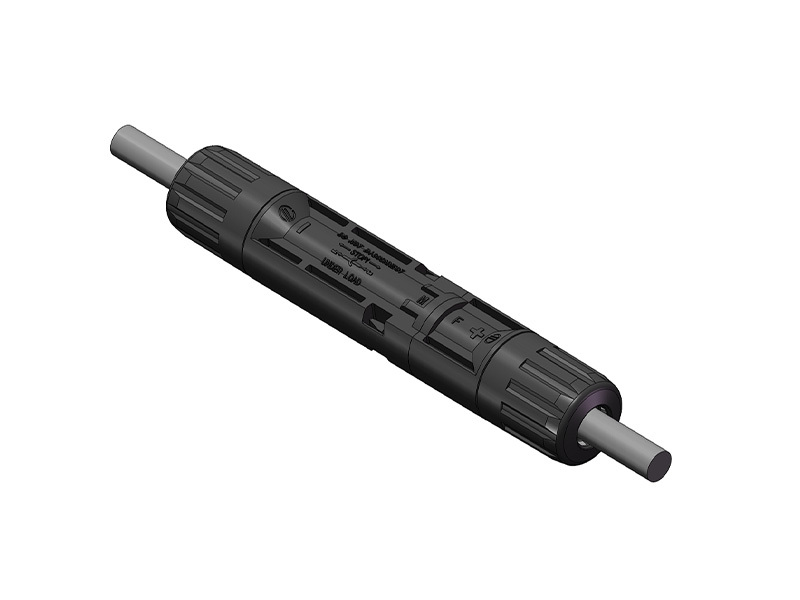

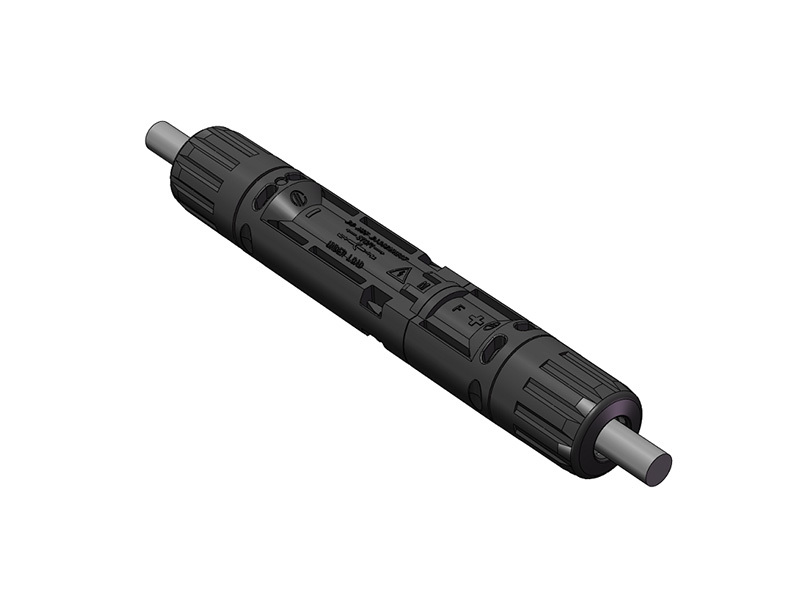

TL-BOX022.3-A
Keyword :
TL-BOX022.3-A
Category：
- 产品描述
-
Technical Parameter
Certification authority TÜV Rheinland TÜVSÜD Certification standards IEC 62790:2020 Certificate No. R 50539999 B079881 0008 Rated voltage 1000V\1500V Rated current 15A\18A\20A\25A\30A Reverse current 41A Maximum working (Module) Voltage 100V Rated Insulation Voltage ≥8KV Rated Impulse Voltage ≥16KV Peak Reverse Voltage ≥45V Safety class Class Ⅱ Application class Class A Over voltage category III Pollution degree 1 Protection degree IP68(1m,1h） Flammability class UL94 V0-5VB Temperature range -40℃~85℃ Insulating material PPE\PPO\PA Conductor surface treatment process Nickel-plated Contact Resistance ≤0.5mΩ Cable Specification 4mm²（12AWG） Termination and Connection Crimping Amount of Potting glue 7.5mL\7.5mL\7.5mL Busbar area size 8.1mm×0.8mm
Product Introduction
Technical Parameter
| Certification authority | TÜV Rheinland | TÜVSÜD |
| Certification standards | IEC 62790:2020 | |
| Certificate No. | R 50539999 | B079881 0008 |
| Rated voltage | 1000V\1500V | |
| Rated current | 15A\18A\20A\25A\30A | |
| Reverse current | 41A | |
| Maximum working (Module) Voltage | 100V | |
| Rated Insulation Voltage | ≥8KV | |
| Rated Impulse Voltage | ≥16KV | |
| Peak Reverse Voltage | ≥45V | |
| Safety class | Class Ⅱ | |
| Application class | Class A | |
| Over voltage category | III | |
| Pollution degree | 1 | |
| Protection degree | IP68(1m,1h） | |
| Flammability class | UL94 V0-5VB | |
| Temperature range | -40℃~85℃ | |
| Insulating material | PPE\PPO\PA | |
| Conductor surface treatment process | Nickel-plated | |
| Contact Resistance | ≤0.5mΩ | |
| Cable Specification | 4mm²（12AWG） | |
| Termination and Connection | Crimping | |
| Amount of Potting glue | 7.5mL\7.5mL\7.5mL | |
| Busbar area size | 8.1mm×0.8mm | |
Keyword :
TL-BOX022.3-A
